2 Yard Static Compactors2 Yard Static Compactors

  • Motor Rating 7.5kW
  • Power Supply Rating 415 Volt 3 phase 32 amp
  • Control Panel Voltage 24 volt
  • Clear Aperture Width 1430mm
  • Clear aperture Length 1200mm
  • Charge Box Depth 940mm
  • Charge box Volume 1.61m3
  • CHEM Volume per Stroke 1.37m3
  • Cycle Time 45sec
  • CHEM Volume per Hour 1.10m3
  • Overall Height (top of flange) 1300mm
  • Overall Length 3620mm
  • Overall Width 1720mm
  • Basic Hydraulic Pressure 150bar
  • Hydraulic Capacity 150ltr
  • Total Weight 2.3 tonne
  • Ram Force 35 ton

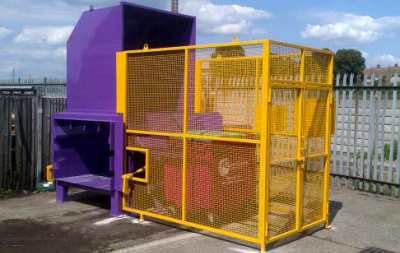

2 Yard Static Compactors with Optional Lifter

2 Yard Static Compactors with Lifter

  • Motor Rating 7.5kW
  • Power Supply Rating 415 Volt 3 phase 32 amp
  • Control Panel Voltage 24 volt
  • Clear Aperture Width 1430mm
  • Clear aperture Length 1200mm
  • Charge Box Depth 940mm
  • Charge box Volume 1.61m3
  • CHEM Volume per Stroke 1.37m3
  • Cycle Time 45sec
  • Overall Height (top of flange) 1300mm
  • Overall Length 3362mm
  • Overall Width 2220mm
  • Basic Hydraulic Pressure 150bar
  • Hydraulic Capacity 150ltr
  • Total Weight 2.8 tonne
  • Ram Force 35 ton

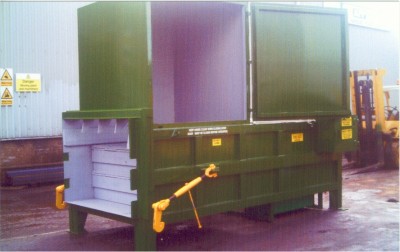

2.5 Yard Static Compactors2.5 Yard Static Compactors

  • Motor Rating 7.5kW
  • Power Supply Rating 415 Volt 3 phase 32 amp
  • Control Panel Voltage 24 volt
  • Clear Aperture Width 1430mm
  • Clear aperture Length 1400mm
  • Charge Box Depth 940mm
  • Charge box Volume 1.88m3
  • HEM Volume per Stroke 1.60m3
  • Cycle Time 45sec
  • CHEM Volume per Hour
  • Overall Height (top of flange) 1300mm
  • Overall Length 3693mm
  • Overall Width 1720mm
  • Basic Hydraulic Pressure 150bar
  • Hydraulic Capacity 150ltr
  • Total Weight 2.8 tonne
  • Ram Force 35 ton

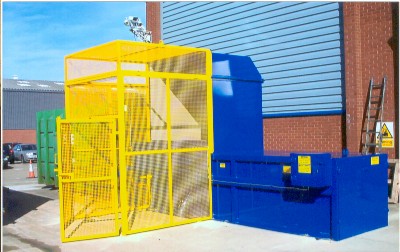

2.5 Yard Static Compactors2.5 Yard Static Compactors

  • Motor Rating 15kW
  • Power Supply Rating 415 Volt 3 phase 63 amp
  • Control Panel Voltage 24 volt
  • Clear Aperture Width 1500mm
  • Clear aperture Length 2000mm
  • Charge Box Depth 940mm
  • Press Force 38 Tonne
  • Cylinder Bore 180mm
  • Cycle Time 38sec
  • Overall Height (not inc Hopper) 1300mm
  • Overall Length 5100mm
  • Overall Width 1880mm
  • Basic Hydraulic Pressure 150bar
  • Hydraulic Capacity 250ltr
  • Total Weight 3.9 tonne
  • Ram Force 35 ton

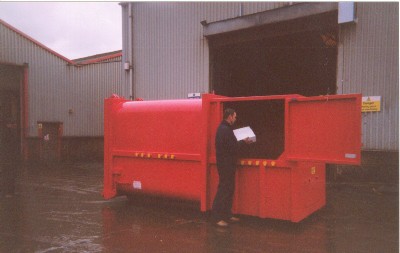

Skip Portable Compactors for Hand Loading

Skip Portable Compactors for Hand Loading

  • Motor Rating 7.5kW
  • Power Supply Rating 415 Volt 3 phase 32 amp
  • Control Panel Voltage 24 volt
  • Clear Aperture Width 1470mm
  • Clear aperture Length 1830mm
  • Charge Box Depth 940mm
  • Charge box Volume 1.88m3
  • CHEM Volume per Stroke 1.60m3
  • Cycle Time 45sec
  • CHEM Volume per Hour 1.51m3
  • Overall Height (inc. Hopper) 2750mm
  • Overall Length 6340mm
  • Overall Width 2480mm
  • Basic Hydraulic Pressure 150bar
  • Hydraulic Capacity 150ltr
  • Total Weight 2.8 tonne

RO/RO Portable Compactors with Lifter

RO RO Portable Compactors with Lifter

  • Motor Rating 7.5kW
  • Power Supply Rating 415 Volt 3 phase 32 amp
  • Control Panel Voltage 24 volt
  • Clear Aperture Width 1430mm
  • Clear aperture Length 1400mm
  • Charge Box Depth 940mm
  • Charge box Volume 1.88m3
  • CHEM Volume per Stroke 1.60m3
  • Cycle Time 45sec
  • CHEM Volume per Hour 1.51m3
  • Overall Height (inc. Hopper) 2750mm
  • Overall Length 5960mm
  • Overall Width 2480mm
  • Basic Hydraulic Pressure 150bar
  • Hydraulic Capacity 150ltr
  • Total Weight 3.4 tonne
