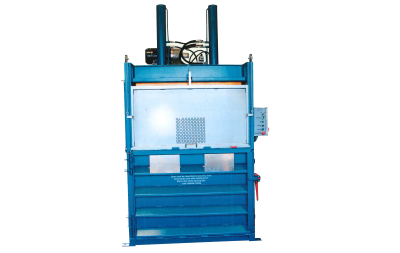

Mill size balersMill Size Balers

  • Pressing Power 50 tonne
  • Cycle Time 32 sec
  • Overall Width 1900mm
  • Overall Depth 1150mm
  • Overall Height 3850mm
  • Loading Width 1560mm
  • Loading Height 690mm
  • Maximum Bale Width 1560mm
  • Maximum Bale Depth 1150mm
  • Maximum Bale Height 790mm
  • Approximate Machine Weight 2.2 tonne
  • Bale Weight (dep on material) 650kg
  • Power supply Rating 415 Volt 32 amp
  • Motor Rating¬†7.5kw 24volt DC

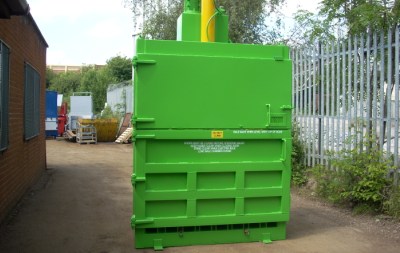

Alternative mill size balerAlternative Mill Size Balers

  • Pressing Power 40 tonne
  • Cycle Time 58 sec
  • Overall Width 1900mm
  • Overall Depth 1150mm
  • Overall Height 3280mm
  • Loading Width 1560mm
  • Loading Height 590mm
  • Maximum Bale Width 1560mm
  • Maximum Bale Depth 1150mm
  • Maximum Bale Height 1080mm
  • Approximate Machine Weight 2.1 tonne
  • Bale Weight (dep on material) 500kg
  • Power supply Rating 415 Volt 16 amp
  • Motor Rating 5.5kw 24volt DC

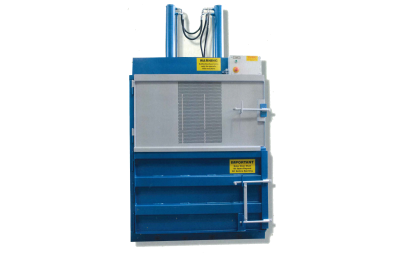

Midi balerMidi Balers

  • Pressing Power 18 tonne
  • Cycle Time 28 sec
  • Overall Width 1450mm
  • Overall Depth 1100mm
  • Overall Height 2450mm
  • Loading Width 1000mm
  • Loading Height 5000mm
  • Maximum Bale Width 1050mm
  • Maximum Bale Depth 1100mm
  • Maximum Bale Height 700mm
  • Approximate Machine Weight 850kg
  • Bale Weight (dep on material) 280kg
  • Power supply Rating 415 Volt (single phase possible)
  • Motor Rating 3kw

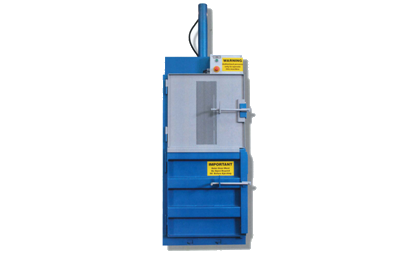

Mini balerMini Balers

  • Pressing Power 8 tonne
  • Cycle Time 20 sec
  • Overall Width 850mm
  • Overall Depth 750mm
  • Overall Height 2300mm
  • Loading Width 700mm
  • Loading Height 600mm
  • Maximum Bale Width 700mm
  • Maximum Bale Depth 750mm
  • Maximum Bale Height 800mm
  • Approximate Machine Weight 230kg
  • Bale Weight (dep on material) 75kg
  • Power supply Rating 240 Volt (single phase)
  • Motor Rating 1.5kw

semi-automatic-balerSemi Automatic Mill Size Balers

  • Pressing Power 40 tonne
  • Cycle Time 40sec
  • Overall Width 1000mm
  • Overall Length 5000mm
  • Overall Height 280mm
  • Loading Width 800mm
  • Loading Length 1000mm
  • Maximum Bale Width 1000mm
  • Maximum Bale Length 1200mm
  • Maximum Bale Height 800mm
  • Approximate Machine Weight 4.2 tonne (approx)
  • Bale Weight (dep on material) 400kg
  • Cylinder Bore 180mm
  • System Pressure 175 bar
  • Motor Rating 7.5kW
  • Power Supply Rating 415kw 3phase 32amp
  • Shear Blade optional
  • Manual Four Wire Tie off

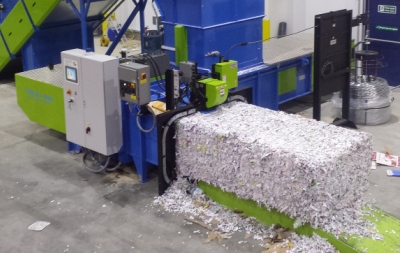

Fully automatic balerFully Automatic Mill Size Balers

  • High density bales
  • 70Ton or 115ton baler options
  • Fully automatic baling sequence
  • ISO Standard bale size, suitable for efficient loading of container or trailer
  • Robust Accent 470 tying device, Low maintenance
  • High throughput of up to 20 bales per hour
  • No special foundation required for installation
  • Number of wires per bale can be varied according to material
  • Wire tie is flush with bale to prevent injury to personnel and damage to trailer curtains
  • Large feed opening
